Overview
AtCor Medical SphygmoCor Cardiovascular Pulse Wave Analysis System is a clinically established, non-invasive diagnostic platform used worldwide for assessing arterial stiffness, estimating central (aortic) blood pressure, and supporting advanced vascular and haemodynamic analysis.
Widely regarded as a gold-standard system in cardiovascular research and specialist cardiology settings, the SphygmoCor system captures high-fidelity arterial pressure waveforms using applanation tonometry and derives clinically relevant parameters through dedicated software (licence dependent).

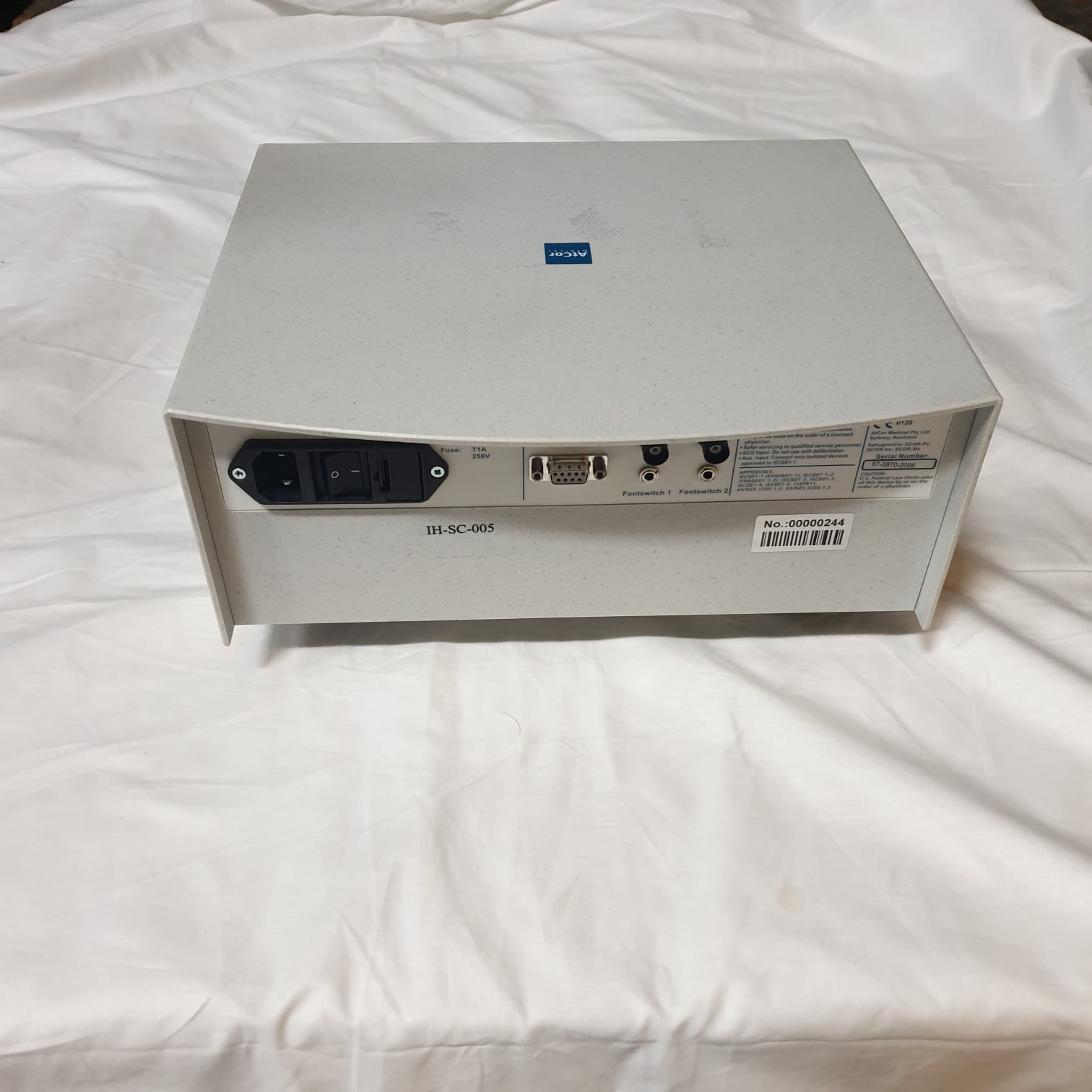

This listing includes the complete physical hardware set shown: the SphygmoCor console, AtCor tonometer sensor, cabling, internal accessory drawer with fitted foam, and original printed documentation. The unit shows cosmetic wear consistent with professional clinical use, but no structural damage is visible in the photos.
ATCOR is a subsidiary of CardieX Limited (ASX: CDX), an Australian company listed on the Australian Securities Exchange (ASX). The company’s technology is used worldwide in clinical trials and by medical specialists, with over 4,000 systems in use globally.
Key Features
- Clinically validated pulse wave analysis platform used globally in cardiovascular medicine
- Applanation tonometry technology for high-fidelity arterial waveform acquisition
- Central (aortic) pressure estimation derived from peripheral arterial waveforms
- Arterial stiffness assessment capabilities (e.g., augmentation index; PWV compatible when configured)
- Non-invasive measurement suitable for repeat testing in clinical and research environments
- Desktop console design with integrated pull-out accessory drawer

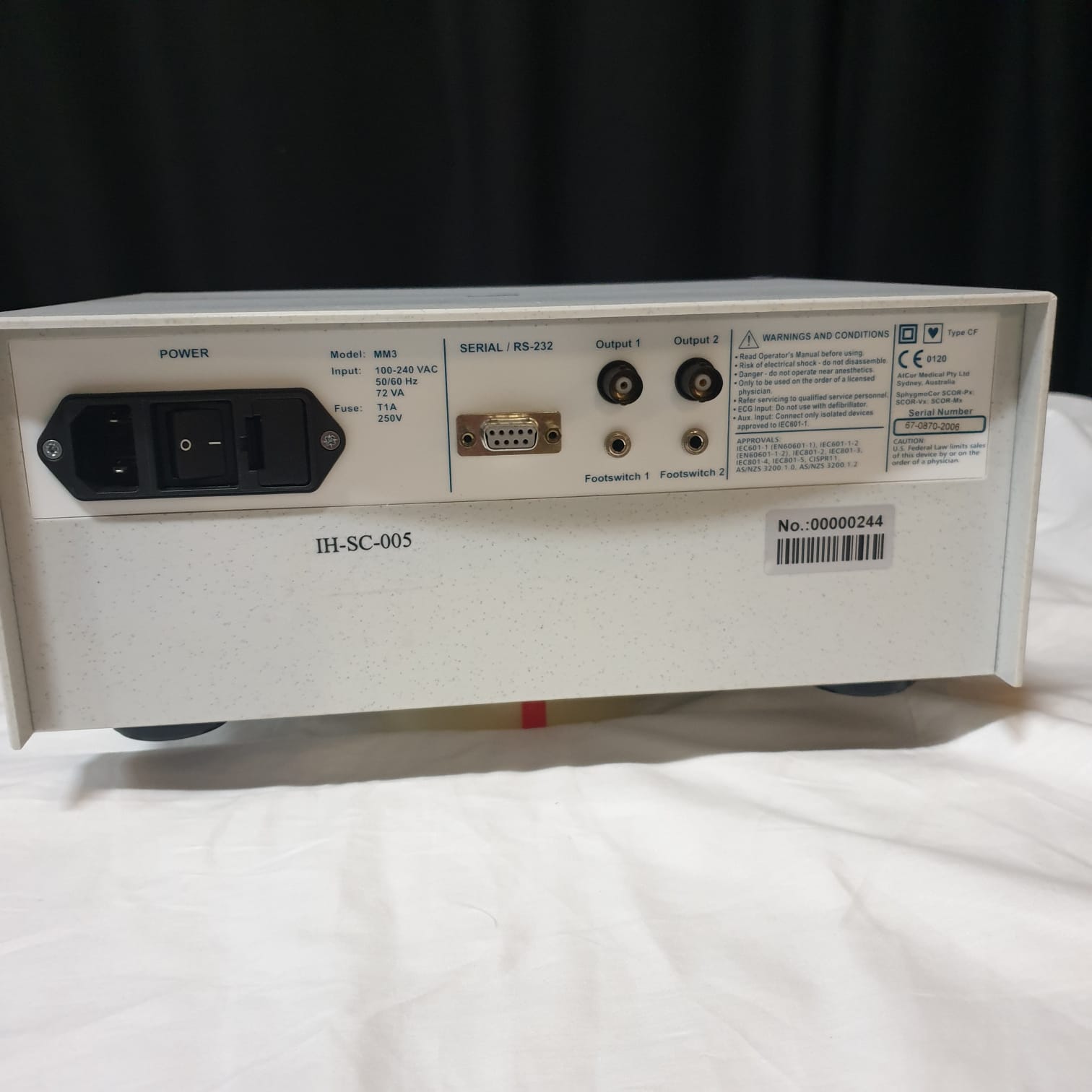

- RS-232 serial connectivity (legacy clinical standard interface)
- Medical-grade universal power (100–240V AC, 50–60Hz)
Included Components
Included exactly as pictured:
- SphygmoCor main control unit (AtCor Medical)
- AtCor applanation tonometer sensor
- Tonometer probe handle and attached cabling

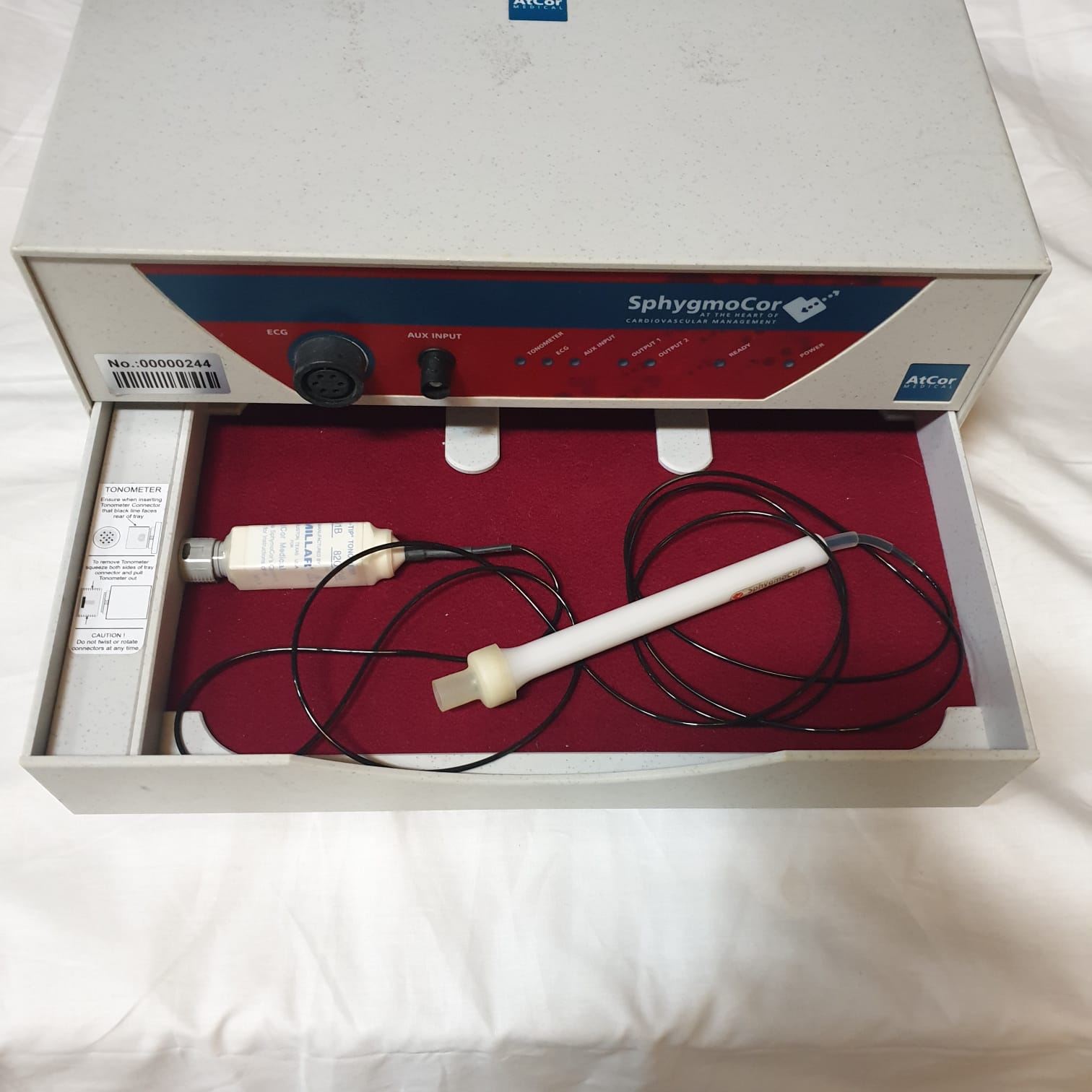

- Internal accessory drawer with fitted foam insert
- Power cable
- Original Operator’s Manual
- Original Concise Software Guide
How It’s Used
The SphygmoCor system captures arterial pressure waveforms (commonly at the radial artery) using applanation tonometry. These waveforms are processed via proprietary analysis software to generate haemodynamic and vascular metrics that are not available through standard brachial blood pressure measurement alone. This platform is widely used in:
- Cardiology clinics and specialist practices
- Hypertension and vascular ageing assessment programs
- Universities, medical teaching, and research laboratories
- Longitudinal cardiovascular research studies
Typical derived metrics may include:
- Central systolic and diastolic pressure estimates
- Augmentation Index (AIx)
- Pulse Wave Velocity (PWV) capability when configured
- Arterial stiffness and vascular ageing indicators
Condition
Condition: Good – Used Clinical Equipment
- Cosmetic wear present on housing consistent with professional use and age
- No cracks, dents, or structural breaks visible in the photos
- Connectors, ports, and switches appear intact
- Tonometer cable insulation appears sound with no visible splitting
- Manuals included (often missing on secondary-market units)
This unit is supplied as-is, as is standard for secondary medical equipment. It has not been
clinically calibrated or software-tested as part of resale.
Software & Compatibility Notes
- Operation requires proprietary SphygmoCor software (licence dependent)
- Software media and licence/activation are not confirmed as included
- RS-232 interface is commonly used with legacy clinical PCs or USB-to-serial adapters
- Ideal for buyers with existing licences, hardware replacement needs, or research/education applications
Technical Summary
- Brand: AtCor Medical
- Product Line: SphygmoCor
- Function: Cardiovascular pulse wave analysis / arterial stiffness assessment
- Measurement Method: Applanation tonometry
- Connectivity: RS-232 serial interface
- Power: 100–240V AC, 50–60Hz
- Form Factor: Desktop clinical console with accessory drawer
Overall Assessment
The AtCor SphygmoCor system remains a highly respected cardiovascular diagnostic platform with strong ongoing relevance in research and specialist clinical environments. Complete physical systems with original documentation are increasingly uncommon on the secondary market, making this unit particularly attractive for institutions and professionals seeking proven technology without the cost of purchasing new equipment.
